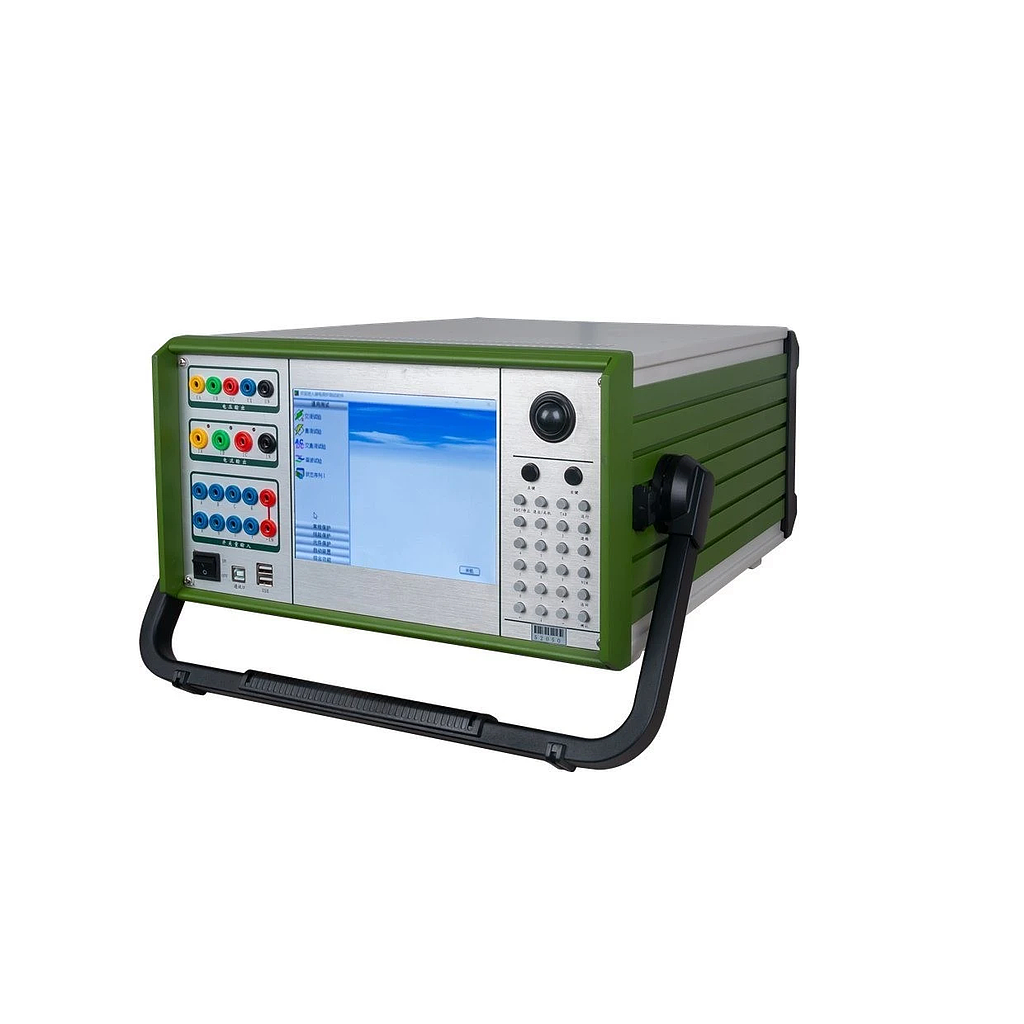

XZH Test XHJB634 ເຄື່ອງທົດສອບການປ້ອງກັນ Relay ສາມເຟສຂອງໄມໂຄຣຄອມພິວເຕີ (1–2000Hz)

Single phase current output : 0~40A, Output Precision 0.2 degree

3 phase parallel current output : 0~120A

Output time: 0-10A Continuously,10-20A≥60", >20A≥10"

Maximum output power of Phase current: 450VA

AC voltage: single phase 4X120V

Output power: ≥60VA/phase

DC current: single phase-10A~+10A    power≥200VA

DC voltage: single phase-150V~+150V    power≥100VA

Frequency range: 1-2000Hz      Frequency resolution:1mHz

Harmonic time: 2~40

Power supply: 220V±10%    50Hz±10%
