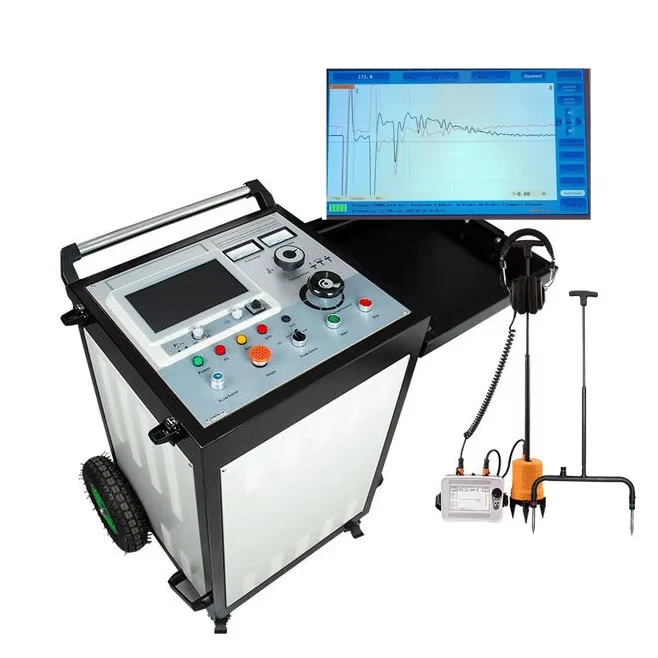

XHHV535-2TSB Cable Fault Location System
Surge HV voltage: 0-8kV/16kV/32kV
High voltage side current: 0-60mA
Inside capacitor: 2μF/32kV, 8μF/16kV, 32μF/8kV
Surge time: Auto surge about 7s, manual control available
Surge energy: 1024J
Surge power: 2KVA
Weight: ≤120kg
Power supply: AC220V±15%, 50Hz±2Hz
HDD503E Cable Fault Pinpointer
Sound channel bandwidth options: All-pass, Low pass, High pass, Band pass
Channel adjustment: 8 levels of sound, magnetic and voltage
Sound output: 16-level gain (0-112dB), 350Ω impedance
Detection range: 0.00-99.99ms, 75mV-75V
Detection accuracy: Positioning ≤0.1m; Step voltage ≤0.5m; Path ≤0.5m
Power supply: 4×18650 standard lithium batteries
Standby time: >8 hours
Operating conditions: -25°C to 65°C, ≤90% humidity
Dimensions: 428L×350W×230H mm
Weight: 7kg
