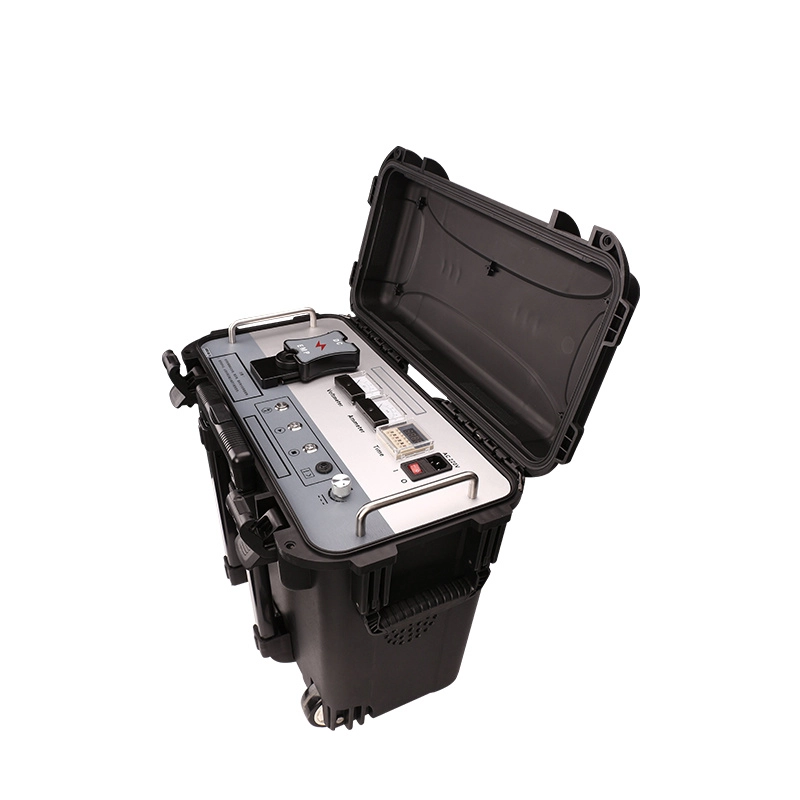

XZH Test XHHV515-12L ເຄື່ອງສ້າງສະຕູດເຕີຕ້ອນແຮງຕ່ຳສຳລັບການທົດສອບຄວາມຜິດພາດຂອງສາຍໄຟ (12kV)

Impact high voltage: 0~12kV

High voltage partial pressure: 2.5 level

Built-in capacitor: 12μF

Output voltage polarity: Negative polarity

Impact power: 250W@peak

Working mode: Selectable/adjustable impulse rate or single shot

Cable length: High-voltage output: 2m, Ground: 3m, Power: 1.8m

Minimum DC output current: 30mA at 12kV

Over temperature protection: 65°C

Over current protection: 8mA (more than 3 seconds)

Dimensions (mm): 540L × 300W × 450H

Weight: ≤ 25kg

Power supply: AC220V±15%, 50Hz±2Hz (60Hz)

Operating temperature: -20°C~+60°C
