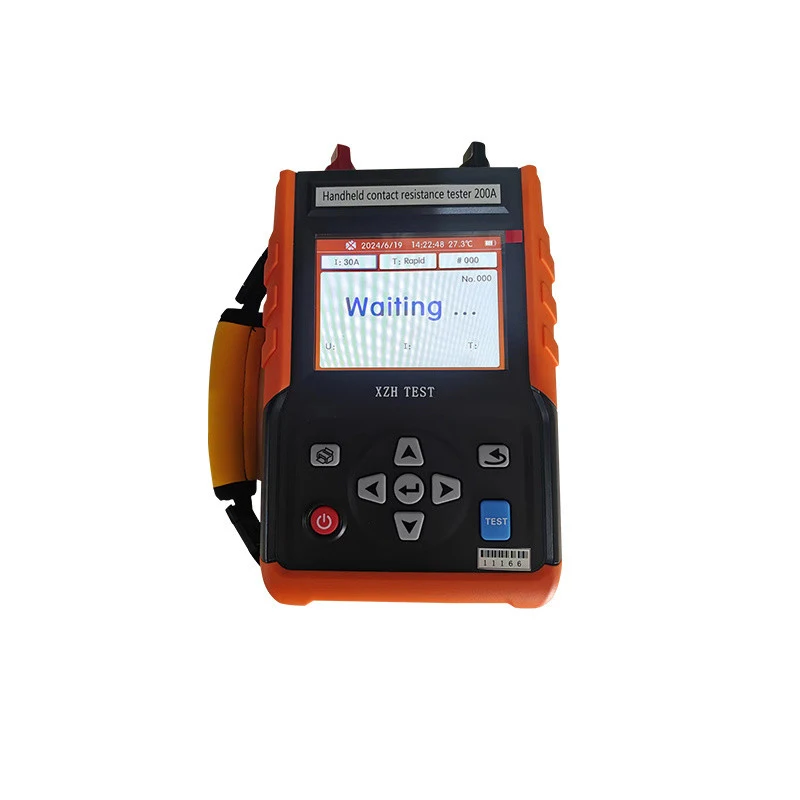

XZH Test XHHL3200H ເຄື່ອງທົດສອບຄວາມຕ້ອງຕໍ່ Ohmmeter

Function: Contact resistance tests of high-voltage switches and circuit breakers; connection resistance tests of metallic welding components; circuit resistance tests of conductors; precise low resistance tests.

Power: Built-in 12.6V 9000mAh rechargeable lithium battery

Measurement Method: 4-wire measurement

Charger: 12.6V/2A

Display: 5.6-inch industrial LCD with high-brightness color

Test Interface: I+, I-, U+, U-

Output Current: ≤5A, 10A, 30A, 50A, 80A, 100A, 200A, 220A

Step Current: 2.5A, up to 87 current gears.

Measurement Range

 ≤5A  :: 1μΩ~3500mΩ

10A  :: 0.1μΩ~200mΩ

30A:: 0.1μΩ~20mΩ

50A:: 0.01μΩ~15mΩ

80A:: 0.01μΩ~10mΩ

100A:: 0.01μΩ~5mΩ

200A :: 0.01μΩ~600uΩ

220A :: 0.01μΩ~500uΩ

Resolution: 0.01μΩ

Accuracy: 30A~220A

±(reading*0.1%+measurement range*0.2%+1μΩ)

10A or less than 5A

±(reading*0.5%+measurement range*0.2%+10μΩ)

Measurement Time: ≤100A:fast mode(recommend),10s, 20s, 30s, 40s,50s, 60s

>100A:fast mode

Printer: Optional, press the print button to print the test results

Data Storage: After the completion of the test, the data is automatically and cyclically saved with up to 999 sets of data stored.

Size of the instrument: L188mm×W85mm×H312mm

Size of Outer Package: Appro L550mm×W420mm×H215mm

Test Leads: Weight of the instrument: appro 2.2kg

Total Weight: appro 9.3kg

Test Leads: Standard Length: 3m (5m is optional)

Connecting the test leads to the current port and voltage port with a resistance of less than 10mΩ

Data Delete: Select Format Memory in the setting interface to delete all data

Data Query: Enter the Data Query interface, press the up, down, left, or right keys to browse the stored data

Automatic shut-down: The battery will automatically shut down if no operation within 15 minutes after power on

Battery Voltage: When the symbol""is displayed on the upper right corner of the instrument, it means that the battery power is exhausted, and it will automatically shut down. Please charge it in time.

Backlight: High, medium, and low brightness

Working Current: The current is 230mA in a non-test state

The current can be set in the test state

Circuit Protection: Open circuit protection, overheat protection

Temperature Protection: By temperature monitoring

Working Temperature and Humidity: -10ºC~50ºC;below 90%RH,no condensation

Storage Temperature and Humidity: -10ºC~60ºC;below 70%RH

Charging Voltage: 12.6V

Safety Standard: IEC61010-1, CAT 600V,Pollution Level 2, JJG724-1991 Verification Regulation of DC Digital Ohmmeter, JJG166-1993 Verification Regulation of DC Resistors, DL/T967-2005Verification regulation of loop resistance tester and DC resistance high-speed tester.
