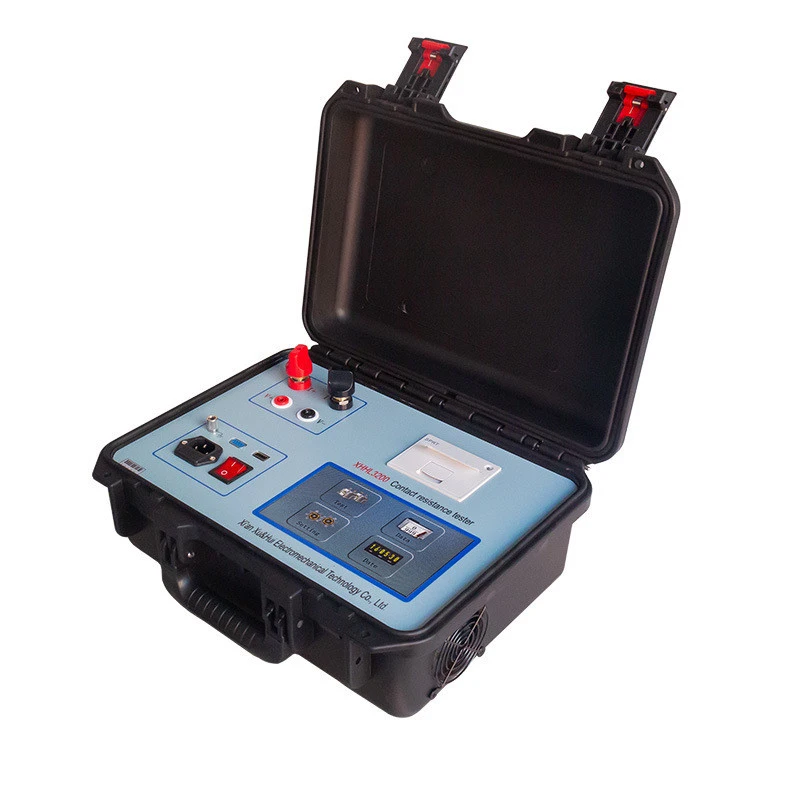

XZH Test XHHL3100 ອຸປະກອນທົດສອບຄວາມຕ້ອງຕໍ່ສູງສຳລັບການທົດສອບຄວາມຕ້ອງຕໍ່ວົງຈອນ (100A, 100mΩ)

High output voltage, wide measuring range

high-precision large current constant current power supply, no manual adjustment, quick and accurate

Using four-terminal wiring method, effectively ruled out the test line resistance on the test results.

320*240 lattice ultra-small pixel 65K true color LCD.

The instrument comes with perpetual calendar clock and power-down storage, test data can be stored at any time

Equipped with a micro-printer, RS232 and USB interface,and computer communications and U disk storage

Intelligent power management technology, the instrument is always working in the minimum power state so that it can effectively save energy.

Test Current: (50A ,100A)

 Range:   (0~100mΩ(50A)     0~50mΩ(100A) )

Resolution: minimum 0.1μΩ

Accuracy: ± (0.5% ± 2 words)

Power: 1000W

Working method: Timing or continuous measurement

Working power supply: AC220V±10% 50HZ(other voltage and frequency can be customized)

Operating temperature: 0~40°C

Relative humidity: less than or equal to 90% no condensation
