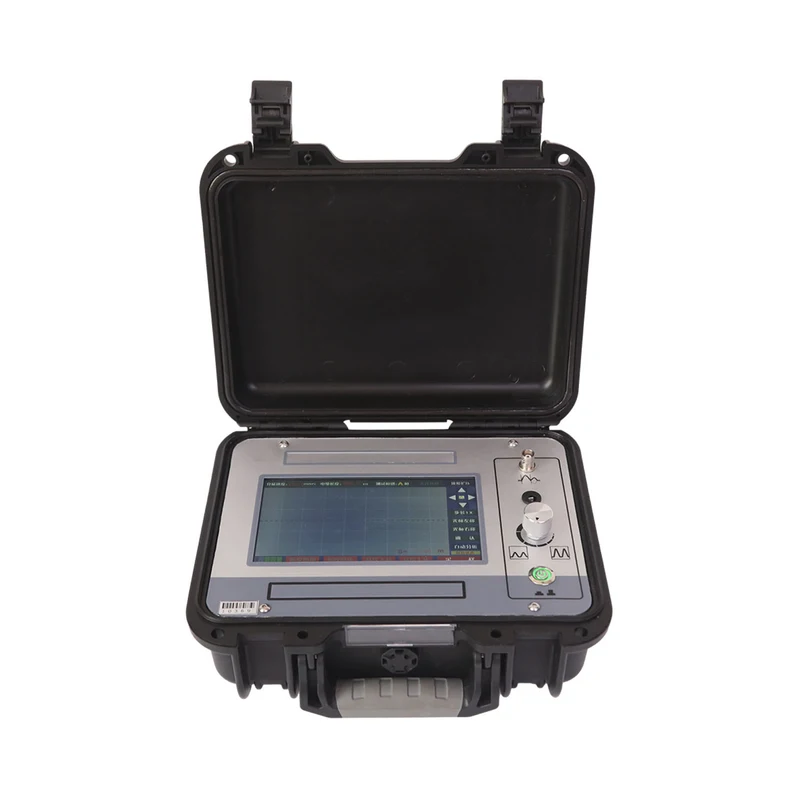

XZH Test XHGG501X ອຸປະກອນທົດສອບອັດຕະໂນມັດ TDR ສຳຫຼວດຂໍ້ຜິດພາດສາຍສະເພາະ (200MHz)

Maximum Test Length: Not Less Than 50km

Minimum Test Length: 10m

Sampling Speed: 10MHz, 20MHz, 50MHz, 100MHz, 200MHz

Pulse Width: 1us, 0.75us, 0.5us, 0.2us, 0.1us

Pulse Amplitude: 400V

Resolution: 0.1m

Test Method: Low Voltage Pulse

Built-in Power Supply: Work continuously for 8 hours after full charge, and it can also work with external AC power supply

Working Conditions: Temperature 0°C~+45°C, Relative Humidity 70%, Atmospheric Pressure 750±30mmHg

Volume: 280L×230W×120H

Industrial 6.6 "LCD display, computer control, touch operation mode;

With the function of measuring length and fault distance;

Automatic continuous sampling, waveform capture timely and accurate;

With low voltage pulse method;

Built-in large capacity battery pack, easy to use;

Use a protective chassis, not lower than IP54.
