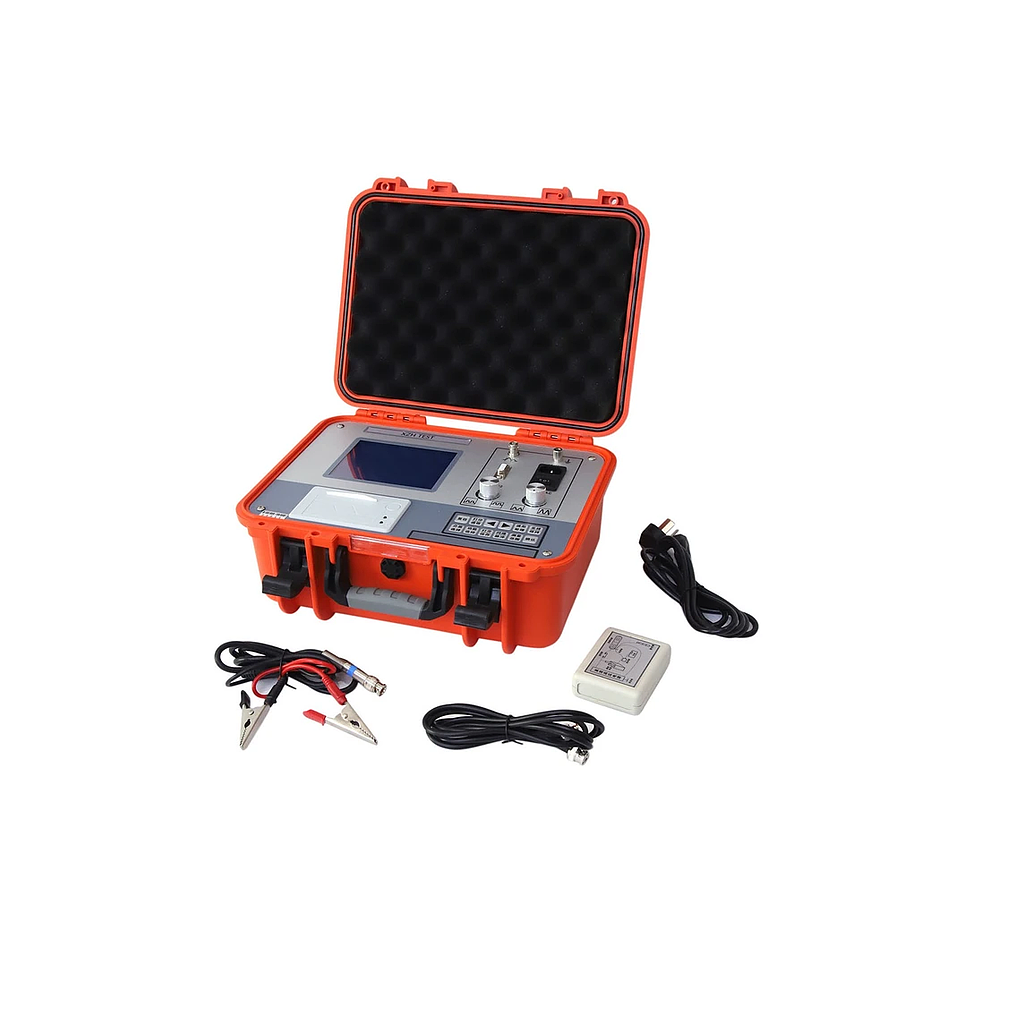

SCM operating platform, push-button operation mode, micro-printer integrated design, can print test waveform and related content at any time;
System functions: fault distance measurement, fault location, propagation speed test, fault resistance value, cable path search, buried depth detection, etc.
Test methods: low voltage pulse, flash over method, audio method, acoustic magnetic synchronization method, valley value method, peak method, electromagnetic induction method, etc.
Display control: Flash tester: 5.7 inch industrial LCD, built-in 24V/7Ah DC power supply, can work continuously for 6 hours; Others for pointer table display;
Test range: test distance: 60km, detection depth: 2-5m;
Measurement accuracy: rough measurement error: ±10m (absolute value) or 1% (relative value), fine measurement error: ±0.2m (fixed point, path, depth);
Sampling frequency: 100MHz, minimum resolution 0.5m (100m/us)
Sampling mode: automatic continuous sampling, never miss any discharge waveform
Low voltage pulse: Width: 0.1uS and 2uS amplitude: 100Vpp
Output power: path power: 100W, impulse power: 0 ~ 400W
Impact high voltage: 0 ~ 35kV
Short circuit current: 0 ~ 200mA
