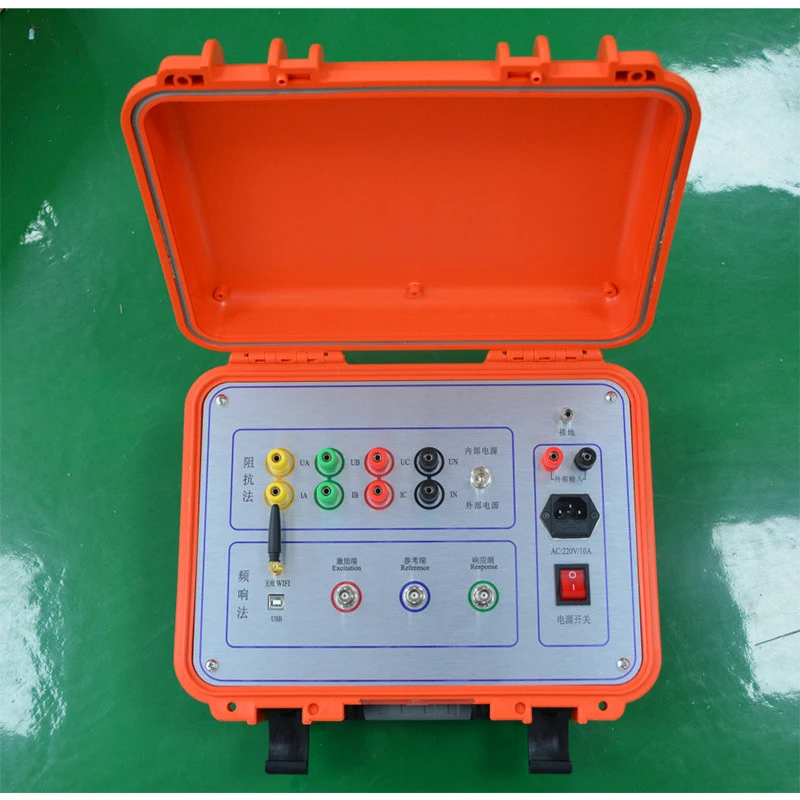

XZH Test XHBX1501S ອຸປະກອນວິເຄາະຄວາມຕອບສະໜອງຄວາມຮອບຮວມຄວາມຮອບຮວມຂອງຂະໜາດສາມຟເຟສ ((10Hz) – (10MHz))

Main Technical Parameters

Scan mode:

Linear scanning distribution

Scanning measurement range: (10Hz) - (10MHz) 40000 scanning point, resolution 0.25kHz, 0.5kHz and 1kHz

Segment frequency scanning measurement distribution

Frequency scanning measurement range:

(0.5kHz)-(1MHz),2000scanning points;

(0.5kHz)-(10kHz)

(10kHz)-(100kHz)

(100kHz)-(500kHz)

(500kHz)-(1000kHz)

Other technical parameters:

Amplitude measurement range (-120dB) to (+20 dB)

Amplitude measurement accuracy: 0.1dB

Scanning frequency accuracy: 0.01%

Signal input impedance: 1MΩ

Signal output impedance: 50Ω

Signal output amplitude: ± 20V

Test repetition percent: 99.9%

Measuring instruments dimensions (LxWxH) 300X340X120 (mm)

Instrument's aluminum box size (LxWxH) 310X400X330 (mm)

Overall weight: 13Kg

Operating temperature: -10ºC to +40ºC

Storage temperature: -20ºC to +70ºC

Relative humidity: <90%, non-condensing
