BestMatch Feature: Yes
Black Background With Sheet Storage: Yes
Calibration: Automatic on integrated and covered white reference
Color Differences: CIE ∆E* (1976), ∆E CMC, CIE ∆E* (2000), and CIE ∆E* (1994)
Closed Loop Support: Yes
Color Bar Alignment: Yes
Color Spaces: CIE L*a*b*, CIE L*C*h°
Communication Interface: Ethernet
Density Range: 0.0 D to 3.0 D
Density Standards: Status A, E, I, T, Tx, Ex, Hi-Fi
Display Resolution:
- Minimum: 17” touch-screen monitor with 1280 x 1024 resolution
- Recommended: 22” touch-screen monitor with 1920 x 1080 resolution
Humidity: 30 to 85% RH (non-condensing)
Illuminants: A, C, D50, D65, D75, F2, F7, F11, D12
Image Contact During Measurements: No Contact
Import/Export Format: CxF3, jtl, cbl,
Industry Standards: ISO 5-4:2009(E), ISO 13655:2009
Ink Wells / Ink Units:
- Density Version: Up to 8
- Spectral Version: Up to 16
Inter-Instrument Agreement: 0.3 dE*ab
Languages Supported: Chinese Simplified, Chinese Traditional, English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish
Light Source: Gas filled tungsten (illuminant type A) and UV LED
Measurement Geometry: 45°/0° ring illumination optics, ISO 5-4:2009(E)
Measurement Conditions: M0, M1, M3
Media Thickness: Max 1.0 mm
NetProfiler Support: Yes
Observers: 2° and 10°
Operating Temperature Range: 10°C to 35°C/50°F to 95°F
PantoneLIVE Support: Yes
Pass / Fail: Yes
Patch Size:
- Small: 2 mm x 3 mm
- Medium: 3 mm x 3 mm
- Polarizer: 3 mm x 3 mm
Scan Length: 29" (74cm)/32" (81cm)/40"(102cm)/44” (112cm)/56" (142cm)/65" (165cm)
Scanning Speed: 170 mm / sec
Spectral Analyzer: DRS spectral engine
Spectral Interval: 10 nm
Spectral Range: 400 nm to 700 nm
Storage Temperature Range: -20° to 50°C/-4° to 122°F
Short Term Repeatability - Density:
- On White: ± 0.01 D max.
- Cyan, Magenta, and Black: ± 0.02 D at 1.8 D
- Yellow:
- S/M: ± 0.02 D at 2.0 D
- Polarizer: ± 0.03 D at 1.8 D
Software Development Kit: Yes
Software Modes: Density /Spectral
Short Term Repeatability - White: 0.15 dE max

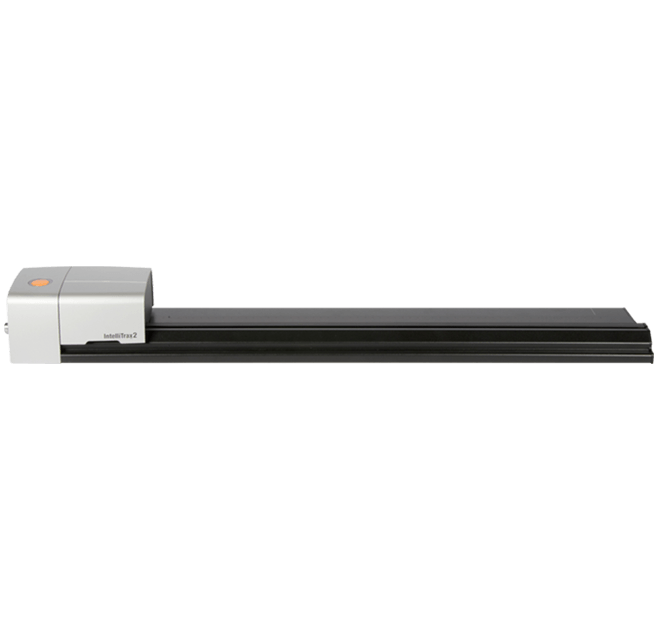

Supported Devices: IntelliTrax2, eXact
Scanning Area: Color bar within 38mm from the sheet edge
Single Pass Scan: M0/M1 or M0/M3 or M1/M3
Track Sizes: 29" (74cm)/32" (81cm)/40"(102cm)/44” (112cm)/56" (142cm)/65" (165cm)
Voltage: 100 - 240VAC, 50/60Hz
What's Included?: Vacuum pump, Cabling, Power supply, Ethernet cable, Software CD, Manuals, device certificate
Windows: Windows 7 (32 and 64 bit), Windows 8 (32 and 64 bit), Windows 10 (32 and 64 bit)
