Short Term Repeatability - White: 0.1 ∆E94* (D50,2°, mean of 10 measurements every 3 seconds on white)
Measurement Geometry: 45°/0° ring illumination optics, ISO 13655:2009
Inter-Instrument Agreement: 0.4 ∆E94* average, 1.0 ∆E94* max. (deviation from X-Rite manufacturing standard at a temperature of 23ºC (73.4ºF) on 12 BCRA tiles (D50, 2º))
Illumination Spot Size: 3.5 mm (0.14”)
Light Source: Gas filled tungsten (illuminant type A) and UV LED
Measurement Conditions
• UV included - ISO 13655:2009 measurement condition M0
• D50 - ISO 13655:2009 measurement condition M1
• UV excluded Filter - ISO 13655:2009 measurement condition M2
Measurement Frequency in Scanning Mode: 200 measurements per second
Minimal Media Thickness: 3 mm (0.12”) on backup board
Patch Size: Minimal Patch Size in Scanning Mode: 7 x 10 mm (0.28” x 0.39”) (Width x Height) with sensor ruler 10 x 10 mm (0.39” x 0.39”) (Width x Height) without sensor ruler
Photometric Range: 10nm; Sampling interval 3.5nm
Spectral Analyzer: i1® technology with built-in wavelengths check; Holographic diffraction grating with 128-pixel diode array
Spectral Range: 380 - 730 nm
Supported Profile Format: ICC
Aperture: Measurement aperture: 4.5 mm (0.18”) diameter (effective measurement aperture during scanning is depending on the patch size and measurement speed)
Unit Color: Silver/Black
Dimensions (length, width, height):
- i1Pro device: 155 mm x 66 mm x 67 mm (6.1” x 2.6” x 2.6”)
- i1 Ruler: 337 mm x 102 mm (13.3” x 4.0”)
- i1 Backup Board: 355 mm x 265 mm (14.0” x 10.4”) folded or 355 mm x 400 mm (14.0” x 15.7”) unfolded
Weight: i1Pro device: 245 g (8.6 oz)
Package Dimensions (length, width, height): 13.7" x 6.1" x 17.0" / 348 mm x 155 mm x 434 mm
Shipped Weight: 9.898 lbs / 4.490 kg
What's Included?:

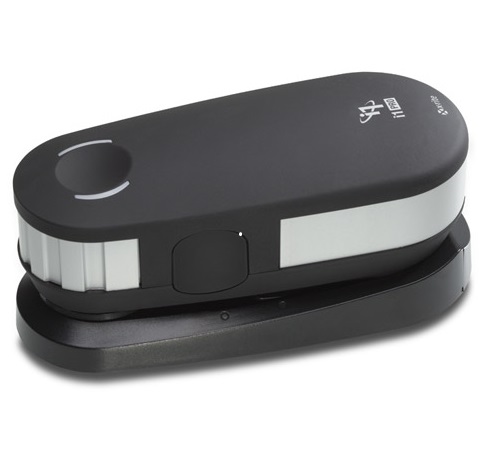

- i1Pro 2 spectrophotometer (measurement device), calibration plate, ambient light measurement head, monitor holder, positioning target, scanning ruler, backup board, USB cable, i1Profiler v1.x software for monitor profiling plus QA for monitors and printers, PANTONE Color Manager software and soft-sided storage case. FreeColorTRUE mobile app download from iTunes® App Store.
