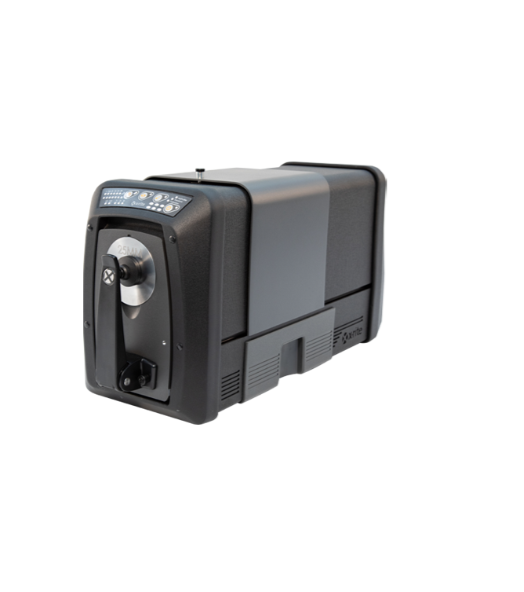

Xrite Ci7600 Benchtop Sphere Spectrophotometer (360nm-750nm)

Calibration: White, Zero, UV

Communication Interface: USB 2.0

Dimensions: 56cm, 22cm, 31cm (length, width, height)

Embedded NetProfiler Support: Yes

Humidity: 5% to 85%, non-condensing

Illumination Spot Size: 25mm, 17mm*, 10mm, 6mm, 3.5mm*

Inter-Instrument Agreement: 0.15 ΔE*ab avg.

Internal Temperature & Humidity Sensor: Yes

Lamp Life: ≥1,000,000 measurements

Laser Transmission Targeting : Yes

Light Source: Pulsed Xenon, D65 calibrated

Measurement Cycle Time: ≈ 2.5 seconds

Measurement Geometry: d/8°

Measurement Spot: 19mm, 10mm, 5mm, 2.5mm

Measurement Time: ≈ 2.5 seconds

Operating Temperature Range: 5°C to 40°C

Optional UV Filters: 400, 420, 460

Photometric Resolution: 0.01%

Reflectance Aperture(s): 3 std / 2 optional

Sample Preview: Door and Video

Service Indicator: Status panel

Shipped Weight: ’25kg

Short Term Repeatability – White: .03 ΔE*ab RMS on white ceramic

Software Development Kit: XDS4

Spectral Analyzer: 2D CCD array holographic grating

Spectral Interval: 10 nm (default); 20nm

Spectral Range: 360nm-750nm

Spectral Reporting: 10 nm (default); 20nm

Status Panel: Yes

Storage Temperature Range: -20° to 50°C

Transform Support: Embedded

Transmission Aperture(s): 3

Voltage: 100 to 240 VAC / 50 to 60Hz

Warm Up Time:  None

Weight: 20.5kg
