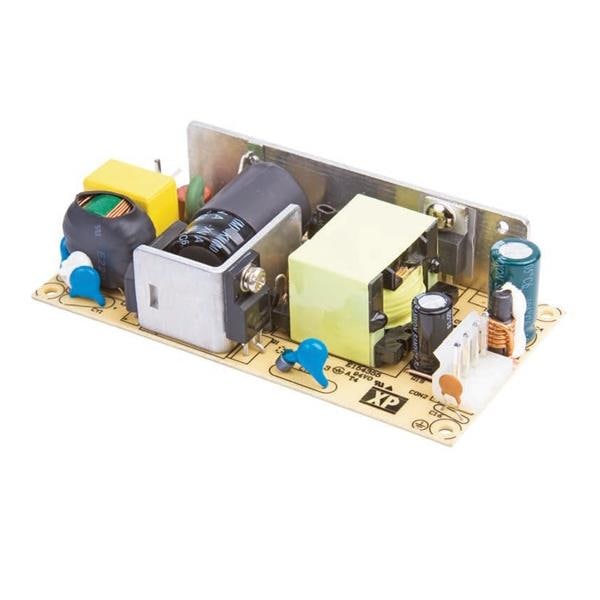

XP Power VFT80US12 ຕົວແປປະຕິບັດ AC-DC PSU, 80W, 1U 2X4" OPEN FRAME

Width: 50.8 mm (2 in)

Height: 26.6 mm (1.047 in)

Length: 101.6 mm (4 in)

Industry: Industrial

Approvals: EN, IEC, UL

Compliance: EN, IEC, UL

Efficiency: 87 %

Unit Weight: 130 g

Output Power: 80 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 6.67 A

Output Voltage-Channel 1: 12 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
