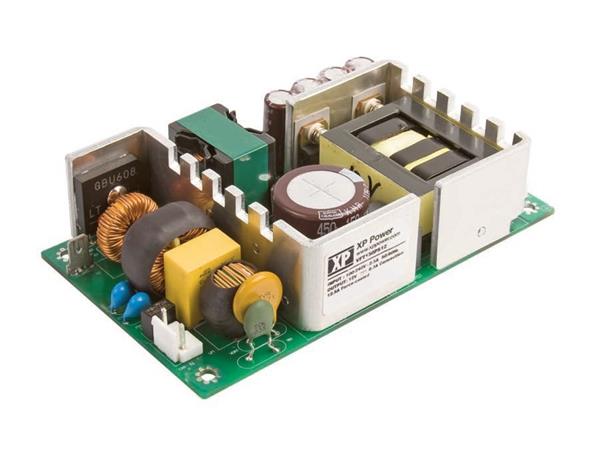

XP Power VFT150PS24 ຕົວແປປະຕິບັດ AC-DC PSU, 150W, 1U 3X5" OPEN FRAME

Width: 76.2 mm (3 in)

Height: 31.5 mm (1.24 in)

Length: 127 mm (5 in)

Industry: Industrial

Approvals: EN, IEC, UL

Compliance: EN, IEC, UL

Efficiency: 92 %

Unit Weight: 340 g

Output Power: 150 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Power - Convection: 100 W

Power - Forced Air: 150 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 6.25 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
