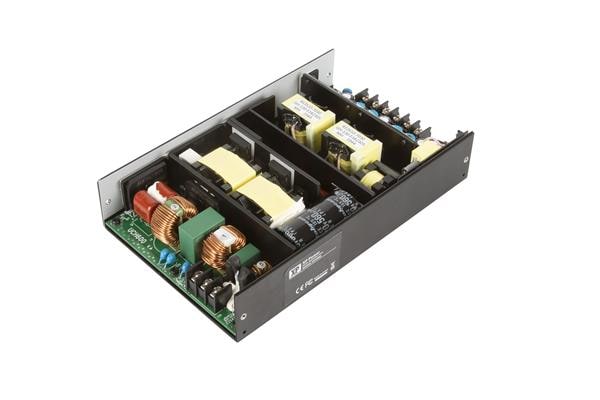

XP Power UCH600PS48 ຕົວແປ AC-DC AC-DC PSU, 600W ລະບົບລົມລົມລົມລົມ, ITE ແລະ ການແພດ

Width: 127 mm (5 in)

Height: 40 mm (1.575 in)

Length: 203.2 mm (8 in)

Industry: Medical, Industrial

Dimensions: 203.2 mm x 127 mm x 40 mm

Efficiency: 95 %

Unit Weight: 1.100 kg

Output Power: 600 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: PCB

Input Frequency: 50 Hz/60 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 12.5 A

Output Voltage-Channel 1: 48 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
