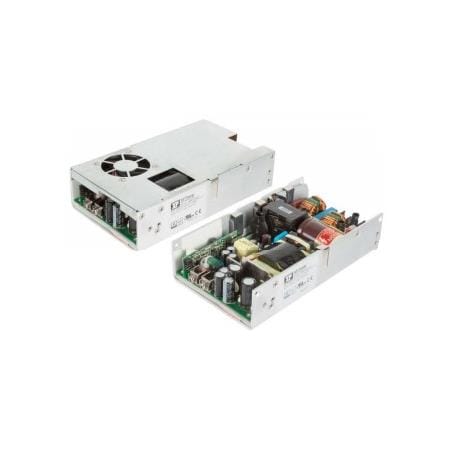

XP Power PBR500PS12B ຕົວແປປະຕິບັດ AC-DC AC-DC, 500W, ITE & MEDICAL

Width: 101.6 mm (4 in)

Height: 44.5 mm (1.752 in)

Length: 177.8 mm (7 in)

Industry: Medical, Industrial

Approvals: CB Report, UL, TUV

Compliance: CB Report, UL, TUV

Efficiency: 90 %

Unit Weight: 1.143 kg

Output Power: 450 W

Input Voltage: 80 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Power - Convection: 350 W

Power - Forced Air: 450 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 37.5 A

Output Voltage-Channel 1: 12 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
