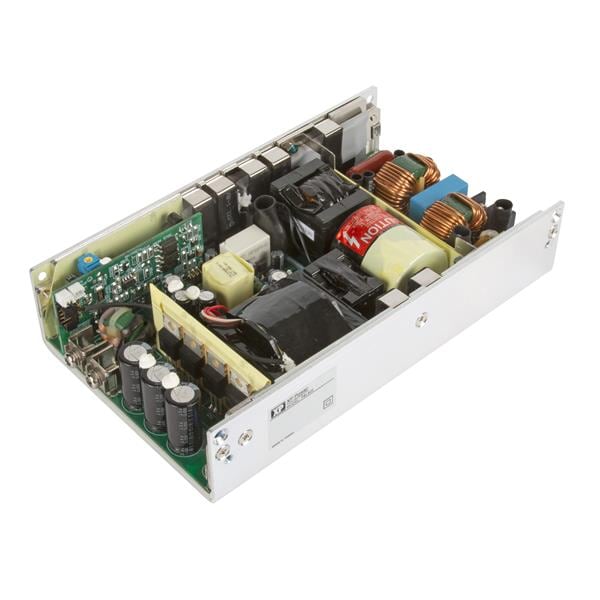

XP Power PBL500PS48B ອຸປະກອນຈຳຫນ່າຍກຳລັງງານ AC-DC 500W ສຳລັບການແພດ (BF) ທີ່ໄດ້ຮັບການອະນຸມັດ

Width: 101.6 mm (4 in)

Height: 39.62 mm (1.56 in)

Length: 180.34 mm (7.1 in)

Industry: Medical

Unit Weight: 1.150 g

Output Power: 500 W

Input Voltage: 80 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Power - Convection: 250 W

Power - Forced Air: 500 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 10.42 A

Output Voltage-Channel 1: 48 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
