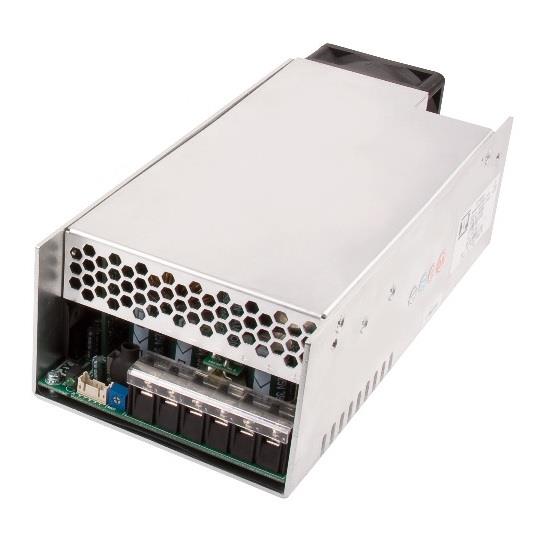

XP Power MHP650PS28-EF ຕົວແປປະຕິບັດ AC-DC PSU, 650W, ການແພດ

Width: 101.6 mm (4 in)

Height: 63.5 mm (2.5 in)

Length: 233.2 mm (9.181 in)

Industry: Medical

Approvals: ANSI/AAMI, CSA, EN, IEC, TUV

Compliance: ANSI/AAMI, CSA, EN, IEC, TUV

Efficiency: 85 %

Unit Weight: 1.3 kg

Output Power: 655 W

Input Voltage: 80 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 23 A

Output Voltage-Channel 1: 28 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
