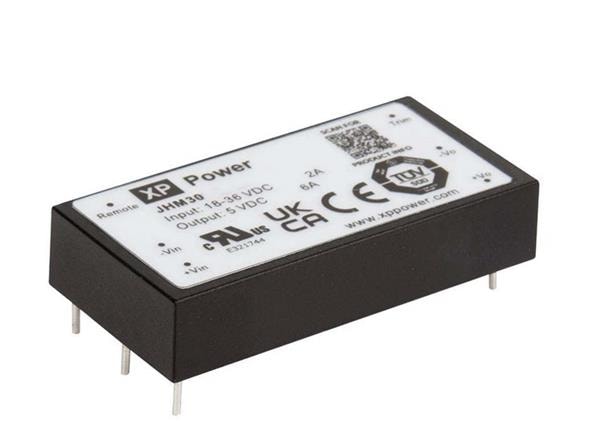

XP Power JHM3024S05 ຕົວແປກະຕຸ້ນ DC-DC ທາງການແພດ ປະລິມານ 30W ປ້ອນເຂົ້າ 18-36VDC 2:1 ບົດອອກເປັນ 5VDC 6.0A

Width: 25.4 mm (1 in)

Height: 10.2 mm (0.402 in)

Length: 50.8 mm (2 in)

Industry: Medical

Dimensions: 50.8 mm x 25.4 mm x 10.2 mm

Application: Home Health Care, Medical Diagnostics

Output Power: 30 W

Input Voltage: 18 VDC to 36 VDC

Mounting Style: Through Hole

Isolation Voltage: 4 kV

Number of Outputs: 1 Output

Input Voltage - Max: 36 V

Input Voltage - Min: 18 V

Input Voltage, Nominal: 24 V

Output Current-Channel 1: 6 A

Output Voltage-Channel 1: 5 V

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C
