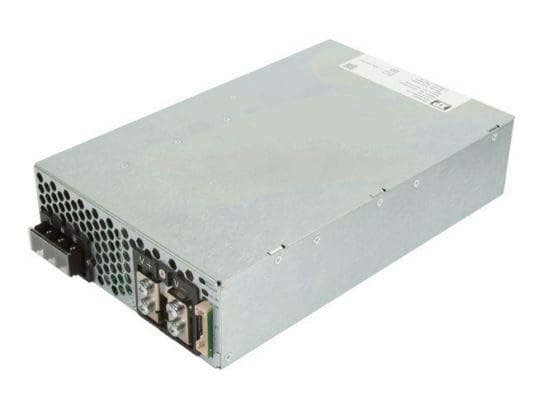

XP Power HPF3K0PS24 ເຊັດຊິ້ງ ສະພາບ AC/DC 3kW ພາກສະຫຼຸບພະລັງງານທີ່ສາມາດປັບໄດ້

Width: 177.8 mm (7 in)

Height: 63.5 mm (2.5 in)

Length: 279.4 mm (11 in)

Industry: Medical, Industrial

Approvals: EN55011, EN60601, EN61000

Dimensions: 279.4 mm x 177.8 mm x 63.5 mm

Efficiency: 90.3 %

Output Power: 3 kW

Input Voltage: 180 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 125 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
