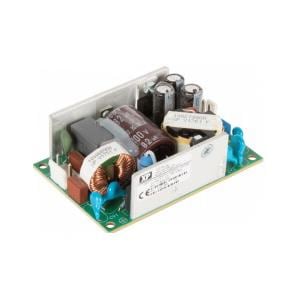

XP Power FCS40US15 ຕົວແປ AC-DC XP Power, ຕົວແປ AC-DC, 40W, ລາຄາຕ່ຳ, 60335

Width: 76.2 mm (3 in)

Height: 26.4 mm (1.039 in)

Length: 50.8 mm (2 in)

Industry: Medical, Industrial

Approvals: ANSI/AAMI ES60601-1, CSA, cUL62368-1, EN60601-1, EN62368-1, IEC60601-1, IEC60950-1, IEC62368-1

Compliance: ANSI/AAMI ES60601-1, CSA, cUL62368-1, EN60601-1, EN62368-1, IEC60601-1, IEC60950-1, IEC62368-1

Efficiency: 86 %

Unit Weight: 86 g

Output Power: 40 W

REACH - SVHC: Details

Input Voltage: 80 VAC to 264 VAC

Mounting Style: Panel

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 2.67 A

Output Voltage-Channel 1: 15 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
