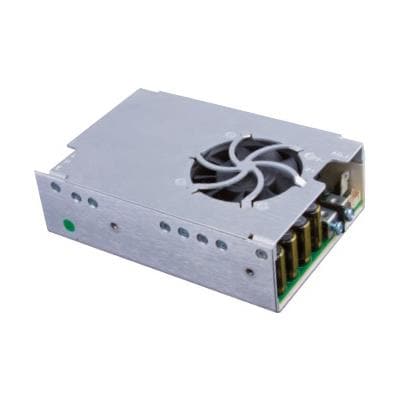

XP Power FCM400PS15 ຕົວແປ AC-DC PSU, 400W, ການແພດ ແລະ ອຸດສາຫະກຳ

Width: 101.6 mm (4 in)

Height: 49 mm (1.929 in)

Length: 152.4 mm (6 in)

Industry: Medical, Industrial

Approvals: ANSi/AAMi ES60601-1, CSA, EN60950-1, IEC60601-1, IEC60950-1, TUV, TUV60601-1, UL60950-1

Compliance: ANSi/AAMi ES60601-1, CSA, EN60950-1, IEC60601-1, IEC60950-1, TUV, TUV60601-1, UL60950-1

Efficiency: 85 %

Unit Weight: 800 g

Output Power: 400 W

Input Voltage: 80 VAC to 275 VAC

Mounting Style: Panel

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 26.6 A

Output Voltage-Channel 1: 15 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
