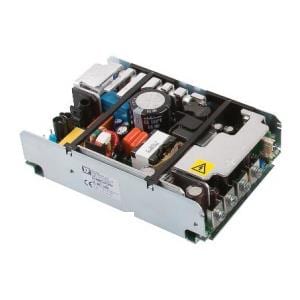

XP Power EMH350PD22-U ຕົວແປປະຕິບັດ AC-DC PSU, 350W, ການແພດ BF ແລະ ອຸດສາຫະກຳ

Width: 101.6 mm (4 in)

Height: 29.9 mm (1.177 in)

Length: 177.8 mm (7 in)

Industry: Medical, Industrial

Approvals: ANSI/AAMI ES60601-1, CSA/cUL, EN60601-1, EN60950-1, UL60950-1

Compliance: ANSI/AAMI ES60601-1, CSA/cUL, EN60601-1, EN60950-1, UL60950-1

Efficiency: 87 %

Output Power: 354 W

Input Voltage: 80 VAC to 275 VAC

Mounting Style: Panel

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 2 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 16.5 A

Output Current-Channel 2: 5.5 A

Output Voltage-Channel 1: 12 VDC

Output Voltage-Channel 2: 36 VDC

Operating Temperature Range: 0 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
