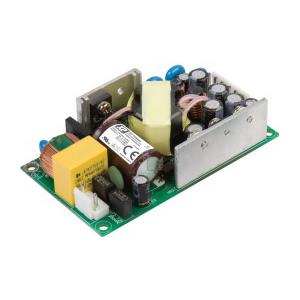

XP Power ECP60UD01 ຕົວແປປະຕິບັດ AC-DC AC/DC, 65W, 2"X4", ອອກສອງທາງ

Width: 50.8 mm (2 in)

Height: 30.4 mm (1.197 in)

Length: 101.6 mm (4 in)

Industry: Medical, Industrial

Approvals: ANSI/AAMI, CSA, cUL60950-1, EN60950-1, IEC60601-1, IEC60950-1

Compliance: ANSI/AAMI, CSA, cUL60950-1, EN60950-1, IEC60601-1, IEC60950-1

Efficiency: 88 %

Unit Weight: 155 g

Output Power: 60 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Panel

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 2 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 7 A

Output Current-Channel 2: 3 A

Output Voltage-Channel 1: 5 VDC

Output Voltage-Channel 2: 12 VDC

Operating Temperature Range: - 20 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
