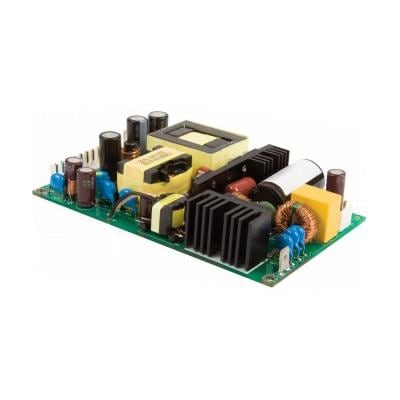

XP Power ECP225PS24-A ຕົວແປປະຕິບັດ AC-DC ເປີດກະບັບ 225W IND+MED PSU, HI EFF.

Width: 76.2 mm (3 in)

Height: 21 mm (0.827 in)

Length: 127 mm (5 in)

Industry: Medical, Industrial

Approvals: ANSI/AAMI, CSA, EN60601-1, EN60950-1

Compliance: ANSI/AAMI, CSA, EN60601-1, EN60950-1

Efficiency: 94 %

Unit Weight: 230 g

Output Power: 225 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Panel

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 9.38 A

Output Voltage-Channel 1: 24 VDC

Operating Temperature Range: - 20 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
