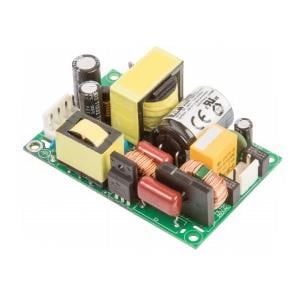

XP Power ECP130PS12 ຕົວແປປະຕິບັດ AC-DC PSU, 130W, 1U 2X3" OPEN FRAME

Width: 50.8 mm (2 in)

Height: 28 mm (1.102 in)

Length: 76.2 mm (3 in)

Industry: Medical, Industrial

Approvals: CSA, EN60950-1, IEC60601-1, LVD, UL60950-1

Compliance: CSA, EN60950-1, IEC60601-1, LVD, UL60950-1

Efficiency: 93 %

Unit Weight: 195 g

Output Power: 130 W

REACH - SVHC: Details

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Panel

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 10.83 A

Output Voltage-Channel 1: 12 VDC

Operating Temperature Range: 0 C to + 80 C

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: 0 C
