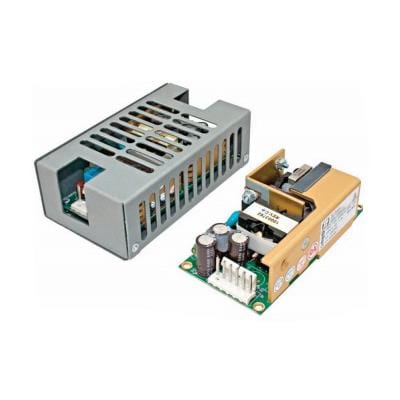

XP Power ECM100US03 ຕົວແປປະຕິບັດ AC-DC PSU, 100W, ອອກພວມເດີດ, ເຄື່ອງກຳລັງເປີດ

Width: 63.5 mm (2.5 in)

Height: 30.5 mm (1.201 in)

Length: 114.3 mm (4.5 in)

Industry: Medical, Industrial

Approvals: ANSI/AAMI, CSA/cUL, EN60601-1, EN60950-1, UL60950-1

Compliance: ANSI/AAMI, CSA/cUL, EN60601-1, EN60950-1, UL60950-1

Efficiency: 85 %

Unit Weight: 180 g

Output Power: 80 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 15 A

Output Voltage-Channel 1: 3.3 VDC

Operating Temperature Range: 0 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
