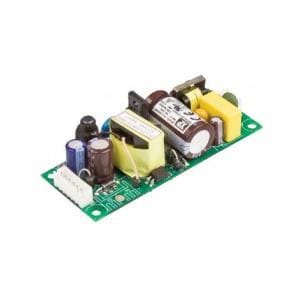

XP Power ECL30UT02-T ຕົວແປປະຕິບັດ AC-DC AC/DC, ສາມຄັ້ງ, 30W

Width: 31.7 mm (1.248 in)

Height: 20 mm (0.787 in)

Length: 78.7 mm (3.098 in)

Industry: Industrial

Approvals: CSA/cUL, EN60950-1, IEC60950-1, UL60950-1

Compliance: CSA/cUL, EN60950-1, IEC60950-1, UL60950-1

Dimensions: 78.7 mm

Efficiency: 83 %

Unit Weight: 60 g

Output Power: 30 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 3 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 3 A

Output Current-Channel 2: 630 mA

Output Current-Channel 3: 630 mA

Output Voltage-Channel 1: 5 VDC

Output Voltage-Channel 2: 12 VDC

Output Voltage-Channel 3: - 12 VDC

Operating Temperature Range: - 20 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
