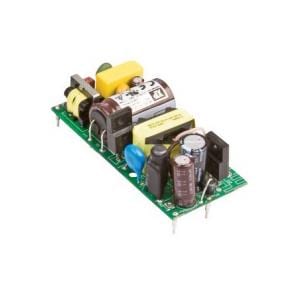

XP Power ECL10US48-P ຕົວແປປະຕິບັດ AC-DC AC/DC, ພາວເອີ 10W, ຕິດບົດ pcb

Width: 27.2 mm (1.071 in)

Height: 22.9 mm (0.902 in)

Length: 49.5 mm (1.949 in)

Industry: Industrial

Approvals: CSA/cUL, EN60950-1, IEC60950-1, UL60950-1

Compliance: CSA/cUL, EN60950-1, IEC60950-1, UL60950-1

Efficiency: 82 %

Unit Weight: 26 g

Output Power: 10 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: PCB

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 210 mA

Output Voltage-Channel 1: 48 VDC

Operating Temperature Range: - 20 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
