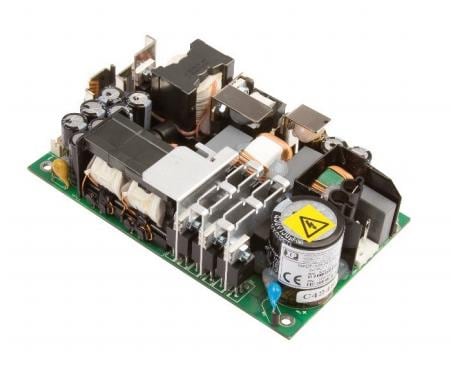

XP Power CHD250PS48 ຕົວແປປະຕິບັດ AC-DC PSU, 250W, ເຟີມເປີດ, ປະສິດທິພາບສູງ

Width: 88.5 mm (3.484 in)

Height: 44.4 mm (1.748 in)

Length: 139.7 mm (5.5 in)

Industry: Medical, Industrial

Approvals: CB, CE, TUV, UL

Compliance: CB, CE, TUV, UL

Efficiency: 94 %

Output Power: 250 W

Input Voltage: 80 VAC to 300 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 5.2 A

Output Voltage-Channel 1: 48 VDC

Operating Temperature Range: - 20 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
