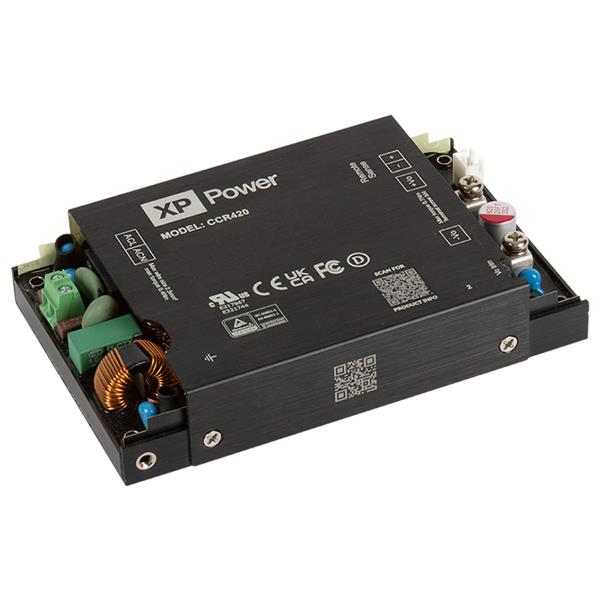

XP Power CCR420PS24 ອຸປະກອນຈົດສະຫຼຸບພະລັງງານ AC-DC ພະລັງງານ 24VDC 17.5A

Width: 83.5 mm

Height: 25.4 mm

Length: 129.4 mm

Industry: Medical, Industrial

Approvals: EN-62368-1, IEC-60601-1

Dimensions: 129.4 mm x 83.5 mm x 25.4 mm

Efficiency: 94 %

Output Power: 420 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 17.5 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C
