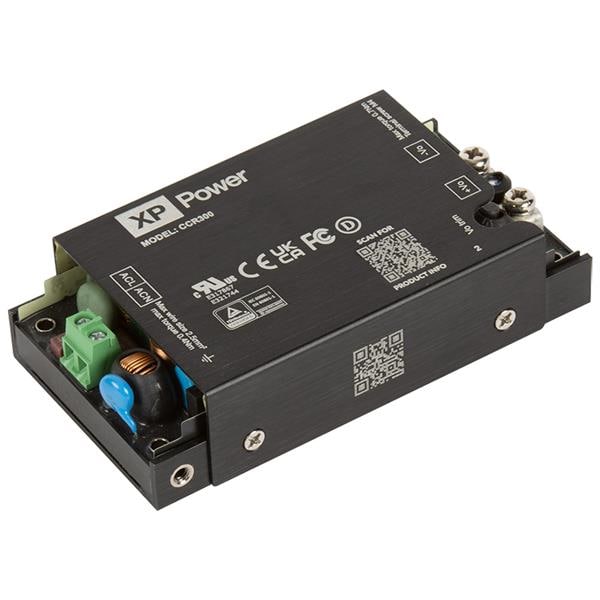

XP Power CCR300PS30 ອຸປະກອນຈົດສະຫຼຸບພະລັງ AC-DC ພະລັງງານ 30VDC 10.0A

Width: 57.9 mm

Height: 25.4 mm

Length: 104 mm

Industry: Medical, Industrial

Approvals: EN-61000, IEC-60601-1-2

Dimensions: 104 mm x 57.9 mm x 25.4 mm

Efficiency: 94 %

Output Power: 300 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 10 A

Output Voltage-Channel 1: 30 VDC

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C
