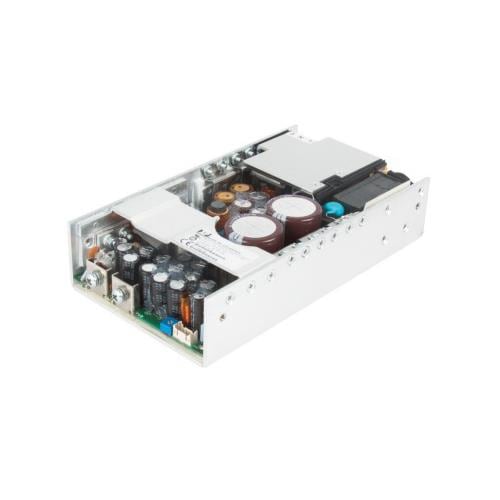

XP Power CCL400PS30 ຕົວແປປະຕິບັດ AC-DC PSU, 400W, U CHANNEL, ປະສິດຕິພາບສູງ

Width: 100 mm

Height: 40 mm

Length: 178 mm

Industry: Medical, Industrial

Approvals: CB, CE, TUV, UL

Compliance: CB, CE, TUV, UL

Efficiency: 94 %

Output Power: 400 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 13.3 A

Output Voltage-Channel 1: 30 VDC

Operating Temperature Range: - 40 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
