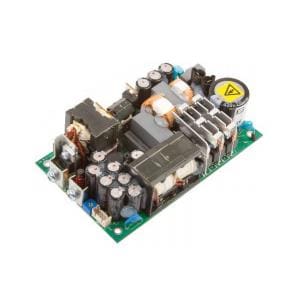

XP Power CCB200PS48 ຕົວແປປະຕິບັດ AC-DC PSU, 200W, ເຟຣມເປີດ, ປະສິດຕິພາບສູງ

Width: 76.2 mm

Height: 36.32 mm

Length: 127 mm

Industry: Medical, Industrial

Approvals: EN60950-1, IEC60601-1, IEC60950-1, TUV, TUV60601-1, UL60601-1, UL60950-1

Compliance: EN60950-1, IEC60601-1, IEC60950-1, TUV, TUV60601-1, UL60601-1, UL60950-1

Efficiency: 85 %

Unit Weight: 400 g

Output Power: 200 W

Input Voltage: 80 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 4.2 A

Output Voltage-Channel 1: 48 VDC

Operating Temperature Range: - 20 C to + 85 C

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 20 C
