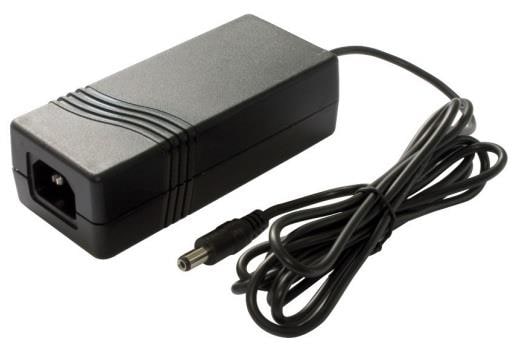

XP Power AEL80US30 ອະເດັດເຕັບ AC ພາວເຊີລາຍ, 80 ວັດ ສະວິດເຊີ, ເດດຕອບ

Width: 76 mm

Height: 43 mm

Length: 146 mm

Region: North America

Industry: Industrial

Approvals: CCC, EN, TUV, UL/cUL

Compliance: CCC, EN, TUV, UL/cUL

Efficiency: 87 %

Unit Weight: 679.500 g

Output Power: 80 W

AC Inlet Type: IEC-320

Input Voltage: 90 VAC to 264 VAC

Connector Type: Barrel Connector

Mounting Style: Desktop

Load Regulation: Regulated

Center Pin Length: 11 mm

Number of Outputs: 1 Output

DC Output Connector: 2.5 mm Barrel Plug, Right Angle (2.5x5.5)

DC Output Cord Length: 1.2 m

Output Current-Channel 1: 2.66 A

Output Voltage-Channel 1: 30 V

AC Plug included/required: Included

Operating Temperature Range: - 20 C to + 60 C

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 20 C
