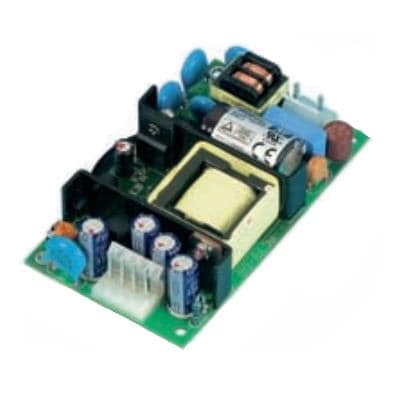

XP Power ACS40US24 ອຸປະກອນຈົດຈໍາ Switch Supplies PSU, OPEN FRAME 40W 24V

Width: 50.8 mm (2 in)

Height: 30.48 mm (1.2 in)

Length: 101.6 mm (4 in)

Industry: Industrial

Approvals: CSA22.2 No. 234, EN60950, UL1950

Compliance: CSA22.2 No. 234, EN60950, UL1950

Efficiency: 86 %

Output Power: 40 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: +/- 500 VAC to +/- 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 1.67 A

Output Voltage-Channel 1: 24 VDC

Operating Temperature Range: 0 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
