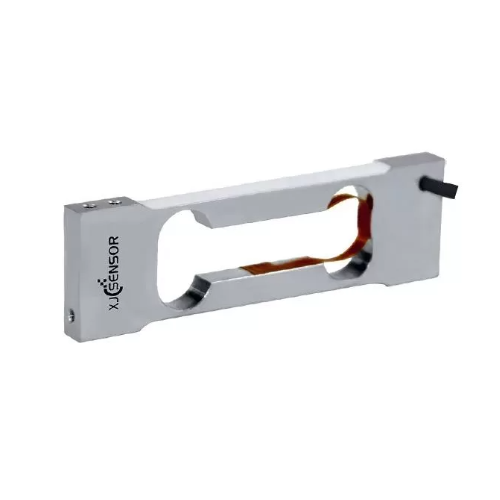

XJCSENSOR X-X11 ໂຫຼດຕາລາງ (3kg)

Material: Aluminum alloy

Rated output: 0.9±0.1mV/V

Zero balance: ±2%F.S.

Non-linearity: 0.03%F.S.

Hysteresis: 0.03%F.S.

Repeatability: 0.03%F.S.

Creep(30 min): 0.01%F.S.

Temp effect on output: 0.03%F.S./10°C

Temp effect on zero: 0.05%F.S./10°C

Input Impedance: 400±50Ω

Output impedance: 350±3Ω

Insulation: ≥5000MΩ/5VDC

Recommended excitation: 5-10V

Maximum excitation voltage: 15V

Compensated temp range: -10~40°C

Operating temp range: -10~80°C

Limit load: 120%

Breaking load: 150%

Cable size: φ3x4m

Life: Full scale more than 1 million times

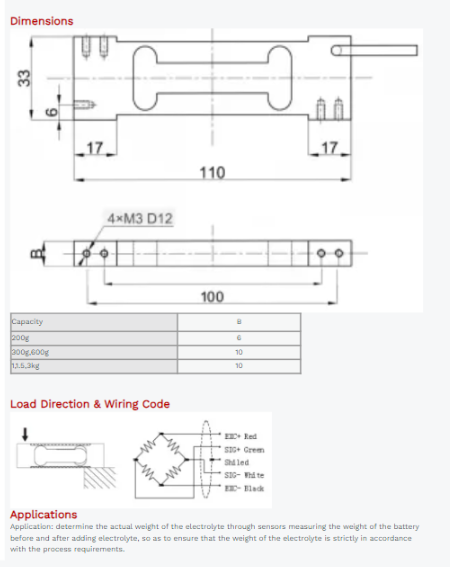

Cable Connection: Ex+: Red；Ex-: Black；Sig+: Green；Sig-: White
