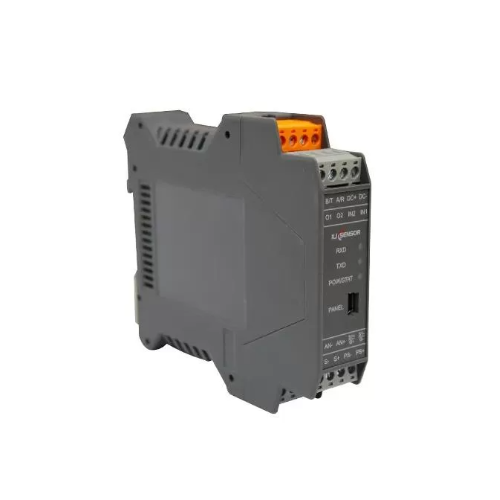

XJCSENSOR X-T20 ໂມດູນດິຈິຕອລ (5VDC)

External power supply: 5VDC

Material: Plastic

Working Voltage: 24VDC

Input sensitivity: 0.5-3.0mV/V

Non-linearity: 0.1%-0.03%F.S.

Resolution: 1/50000

Hysteresis: 0.1%-0.05%F.S.

Sampling speed: 15-4800Hz (Switchable)

Repeatability: 0.1%-0.05%F.S.

Operating temp range: -10℃ to 50℃, Humidity Below 85% RH

Zero balance: ±2%F.S.

Display accuracy: -199.999-999.999

Power Consumption: about 5W

Communication Interface RS232, RS485, 0-10V, 4-20mA

Cable connection Ex+: Red；Ex-: Black；Sig+: Green；Sig-: White (in)
