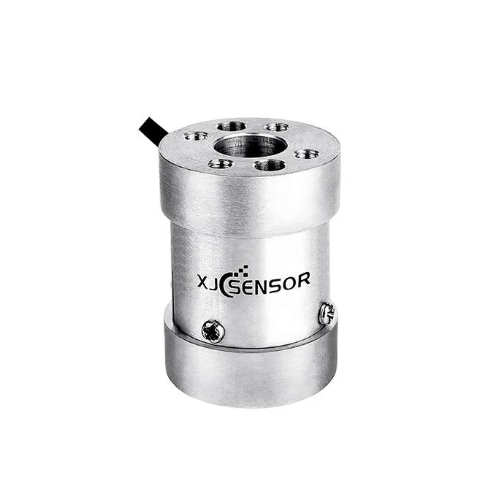

XJCSENSOR X-ST-A Torque Load Cell (0-150N.m)

Capacity: 0-150N.m

Material: Aluminum alloy Alloy steel

Nonlinearity: 0.1%F.S.

Rated output: 1.5~2.0 mV/V

Recommended excitation: 5V-10VDC

Maximum excitation: 15VDC

Protect class: IP64

Compensated temp range: -10~40°C

Hysteresis: 0.1%F.S.

Operating temp range: -20~80°C

Repeatability: 0.1%F.S.

Insulation: ≥5000MQ/100VDC

Input impedance: 450±50Ω

Output impedance: 350±3Ω

Creep(30min): 0.1%F.S.

Temp effect on output: 0.05%F.S./10°C

Zero balance: ±2%F.S.

Temp effect on zero: 0.05%F.S./10°C

Limit load: 150%

Breaking load: 200%

Cable size: Ø3x4m

Life: Full scale more than 1 million times

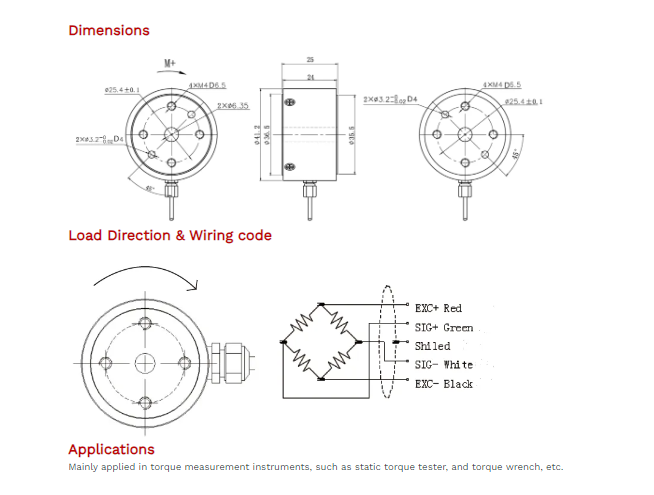

Cable Connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White
