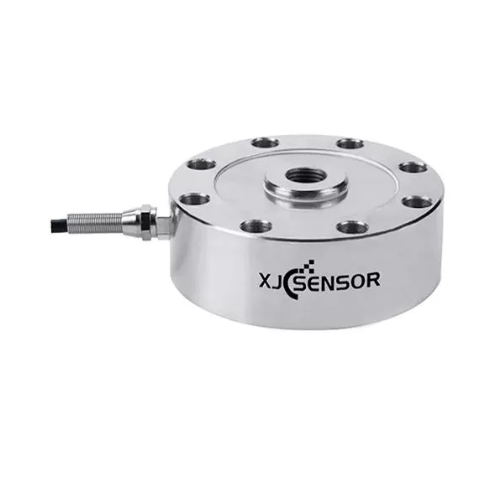

XJCSENSOR X-L08 ຄວາມເຄັ່ງຕຶງແລະການບີບອັດ Load Cell (0-30T)

Capacity: 0-30T

Material: Alloy steel Stainless steel

Nonlinearity: 0.1% F.S.

Rated output: 2.0±0.05mV/V

Recommended excitation: 5-12VDC

Maximum excitation: 15VDC

Protect class: IP66

Compensated temp range: -10~40°C

Hysteresis: 0.05% F.S.

Operating temp range: -20~80°C

Repeatability: 0.05% F.S.

Insulation: ≥2000MΩ

Input impedance: 750±30Ω

Output impedance: 700±5Ω

Creep(30min): 0.05% F.S.

Temp effect on output: 0.05%F.S./10°C

Zero balance: ±2%F.S.

Temp effect on zero: 0.05%F.S./10°C

Limit load: 150%

Breaking load: 200%

Cable size: Ø5 x3m

Life: Full scale more than 1 million times

Cable Connection: Ex+: Red；Ex-: Black；Sig+: Green；Sig-: White

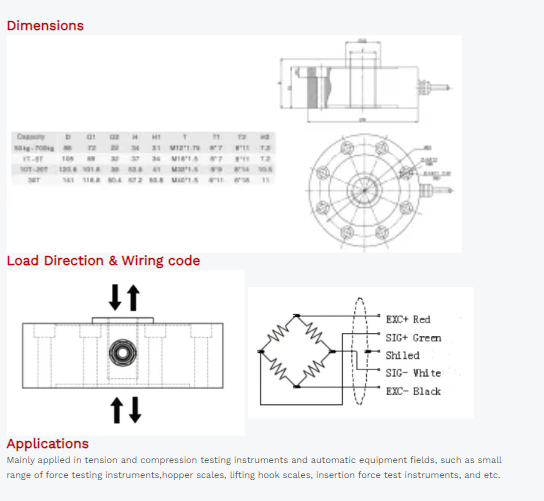

Detail
