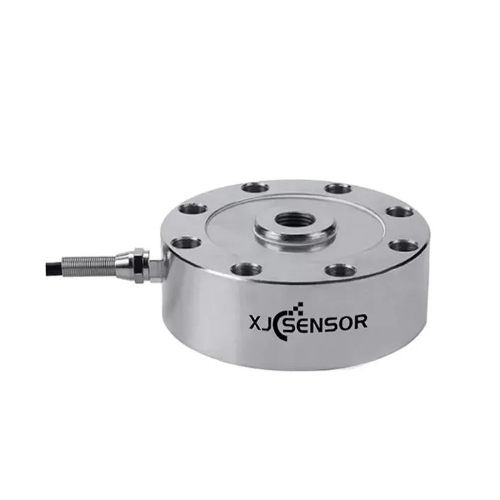

XJCSENSOR X-L08-03 ແກນ Load Cell ດຽວ (30T)

Material: Alloy steel/Stainless steel

Rated output: 2.0±10%mV/V

Zero balance: ±2%F.S.

Non-linearity: 0.05%F.S.

Hysteresis: 0.05%F.S.

Repeatability: 0.05%F.S.

Creep(30 min): 0.05%F.S.

Temp effect on output: 0.05%F.S./10°C

Temp effect on zero: 0.05%F.S./10°C

Input impedance: 750±50Ω

Output impedance: 700±10Ω

Insulation: ≥5000MΩ/100VDC

Recommended excitation: 5-10VDC

Maximum excitation: 15VDC

Compensated temp range: -10~40°C

Operating temp range: -20~80°C

Limit load: 150%

Breaking load: 200%

Cable size: φ4x4m

Life: Full scale more than 1 million times

Cable Connection: Ex+: Red；Ex-: Black；Sig+: Green；Sig-: White

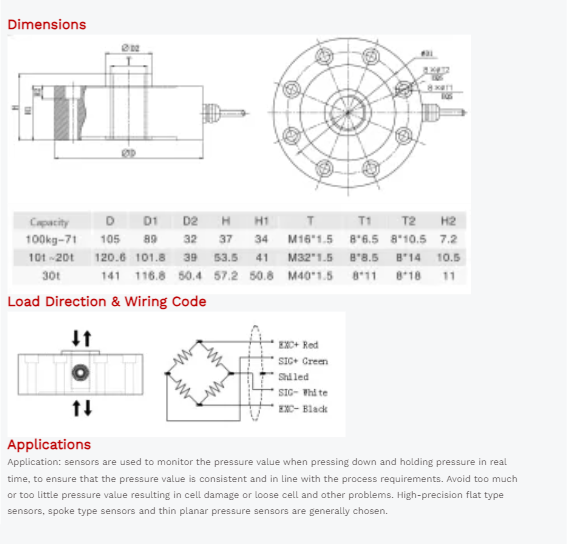

Detail
