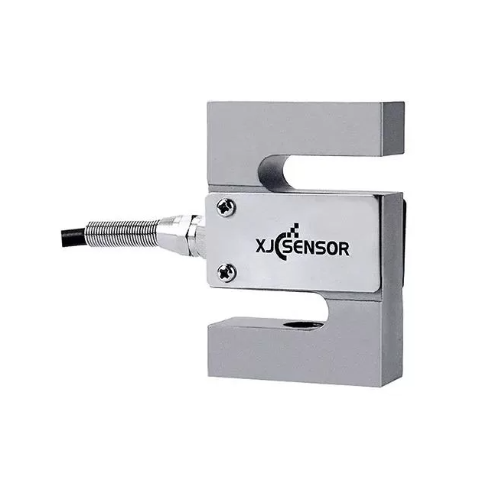

XJCSENSOR X-L02 Compression Load Cell (0-20T)

Capacity: 0-20T

Material: Stainless steel / Alloy steel

Nonlinearity: 0.02-0.05%F.S.

Rated output: 2.0±10%mV/V

Recommended excitation: 5-10VDC

Maximum excitation: 15VDC

Protect class: IP66

Compensated temp range: -10~40°C

Hysteresis: 0.02-0.05%F.S.

Operating temp range: -20~80°C

Repeatability: 0.02-0.05%F.S.

Insulation: ≥5000MΩ/100VDC

Input impedance: 380±10Ω

Output impedance: 350±3Ω

Creep(30min): 0.02%F.S.

Temp effect on output: 0.2%F.S./10°C

Zero balance: ±1 %F.S.

Temp effect on zero: 0.2%F.S./10°C

Limit load: 150%

Breaking load: 200%

Cable size: Ø5x3m

Life: Full scale more than 1 million times

Cable Connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

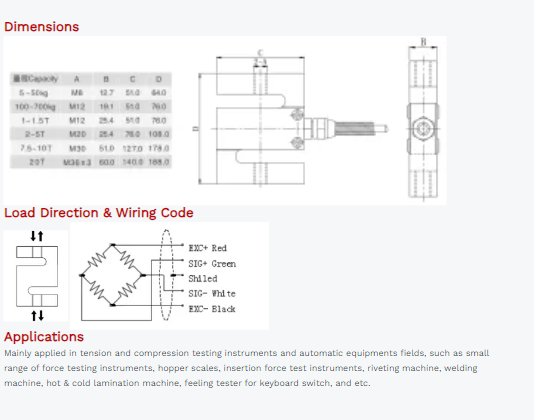

Detail
