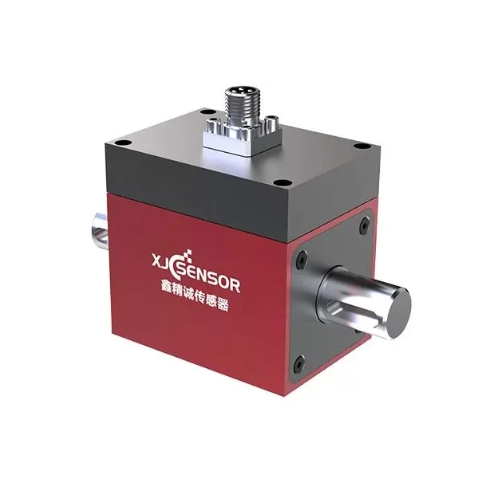

XJCSENSOR X-DT-2002 ເຊັນເຊີແຮງບິດແບບໄດນາມິກ (5000N.m)

Output sensitivity: 0-10V/RS485

Max rotate speed: 5000r/min

Non-linearity: ≤±0.2%F.S.

Repeatability: ≤±0.1%F.S.

Zero balance: ±2%F.S.

Operating temp range: -20~60°C

Compensated temp range: -10~40°C

Insulation resistance: ≥2000MΩ/50VDC

Recommended excitation voltage: 24VDC

Limit load: 200%F.S.

Cable size: φ5x4m

Protection class: IP64

Temp effect on output: ≤±0.2%F.S./10℃

Temp effect on zero: ≤±0.2%F.S./10℃

Response frequency: 100μs

Angular velocity: Pulse signal

Cable Connection: 24+: Red; 24-: Black; Analog output+/RS485+: Green; Analog output-/RS485-: White; Angular velocity 1:Blue; Angular velocity 2:Yellow; Reset: brown;
