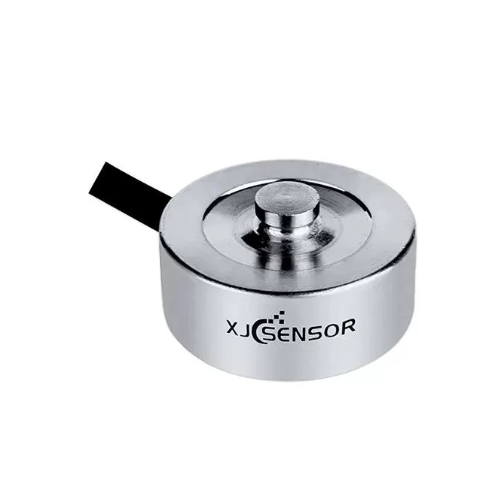

XJCSENSOR X-C01-20-4M Compression Load Cell (0-1000 kg)

Capacity: 0-1000 Kg

Material: Stainless steel

Nonlinearity: 0.5%F.S.

Rated output: 1.0-1.5mV/V

Recommended excitation: 5VDC

Maximum excitation: 10VDC

Protect class: IP64

Compensated temp range: -10~40°C

Hysteresis: 0.5%F.S.

Operating temp range: -20~80°C

Repeatability: 0.1%F.S.

Insulation: 35000MΩ/100VDC


Input impedance: 1000 ±100Ω

Output impedance: 1000 ±100Ω

Creep(30min): 0.1%F.S.

Temp effect on output: 0.2%F.S./10°C

Zero balance: ±2 mV/V

Temp effect on zero: 0.2%F.S./10°C

Limit load: 150%

Breaking load: 200%

Cable size: Ø3x4m

Life: Full scale more than 1 million times

Cable Connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White
