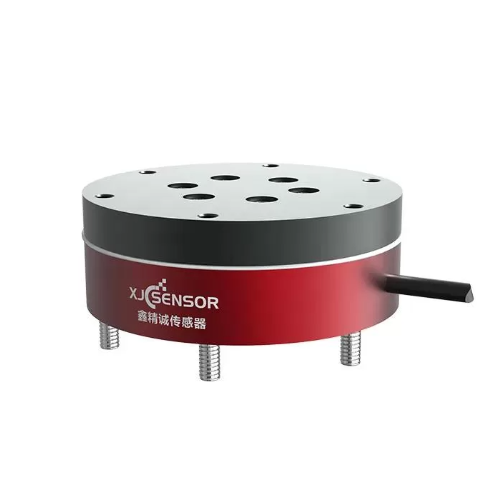

XJCSENSOR X-6A-D82-H29.5-A 6 Axis Force/torque Sensor (20N~100N)

Capacity: 20N~100N

Non-linearity: ≤0.5%F.S.

Repeatability: ≤0.05%F.S.

Zero balance: ±2%F.S.

Operating temp range: -20~80°C

Compensated temp range: -10~40°C

Insulation: ≥2000MΩ/50VDC

Recommended excitation voltage: 5-10VDC

Safe load limit: 150%F.S.

Temp effect on output: ≤0.1%F.S./10°C

Temp effect on zero: ≤0.1%F.S./10°C

Long-term crosstalk error: ≤3%F.S.

Protection class: IP65

Cable size: φ2.4*3m+Lemo14 PIN plug (Option)
