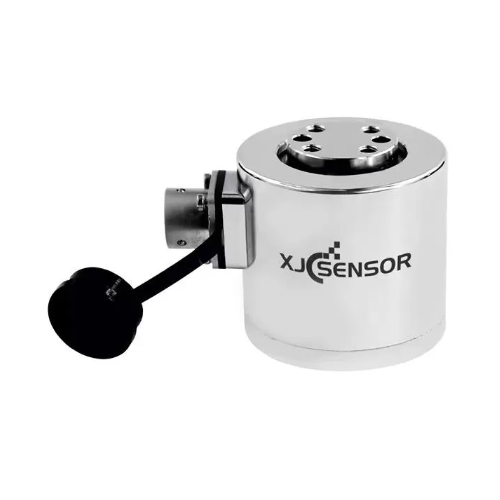

XJCSENSOR X-3A-Y46 3 Axis Load Cell (5kg~50kg)

Capacity: 5kg~50kg

Non-linearity: ≤1%F.S.

Repeatability: ≤0.2%F.S.

Zero balance: ±2%F.S.

Operating temp range: -20~75°C

Compensated temp range: -20~80°C

Insulation: ≥2000MΩ/50VDC

Recommended excitation voltage: 5-10 VDC

Safe load limit: 150%F.S.

Temp effect on output: ≤0.1%F.S./10°C

Temp effect on zero: ≤0.1%F.S./10°C

Long-term crosstalk error: ≤1%F.S.

Protection class: IP64

Cable size: φ6*5m
