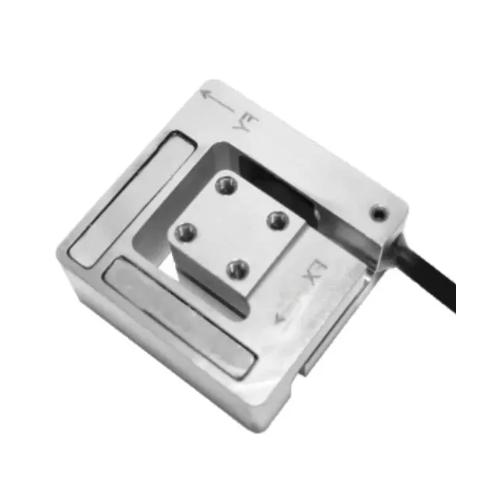

XJCSENSOR X-3A-F40-C 3 Axis Load Cell (1~20 Kg)

Capacity: 1~20 Kg

Non-linearity: ≤0.1%F.S.

Repeatability: ≤0.1%F.S.

Zero balance: ±3%F.S.

Operating temp range: -20~60°C

Compensated temp range: -10~40°C

Insulation: ≥5000MΩ/100VDC

Recommended excitation voltage: 5-10 VDC

Safe load limit: 120%F.S.

Temp effect on output: ≤0.2%F.S./10°C

Temp effect on zero: ≤0.1%F.S./10°C

Long-term crosstalk error: ≤3%F.S.

Protection class: IP65

Cable size: φ3*4m
