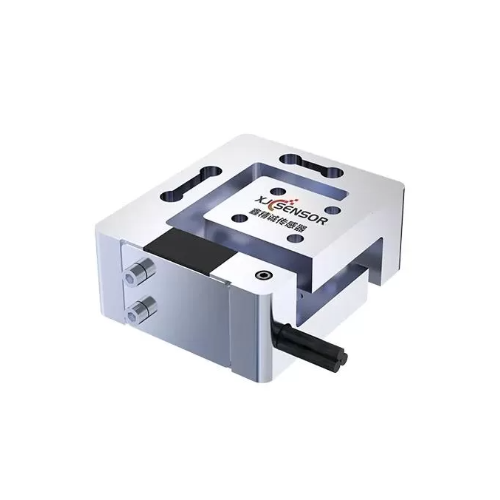

XJCSENSOR X-3A-F39-B 3 Axis Load Cell (10N~200N)

Capacity: 10N~200N

Non-linearity: ≤0.5%F.S.

Repeatability: ≤0.5%F.S.

Zero balance: ±3%F.S.

Operating temp range: -20~60°C

Compensated temp range: -10~40°C

Insulation: ≥5000MΩ/100VDC

Recommended excitation voltage: 5-12 VDC

Safe load limit: 150%F.S.

Temp effect on output: ≤0.2%F.S./10°C

Temp effect on zero: ≤0.2%F.S./10°C

Long-term crosstalk error: ≤1%F.S.

Protection class: IP64

Cable size: φ3*0.5m (Cables)
