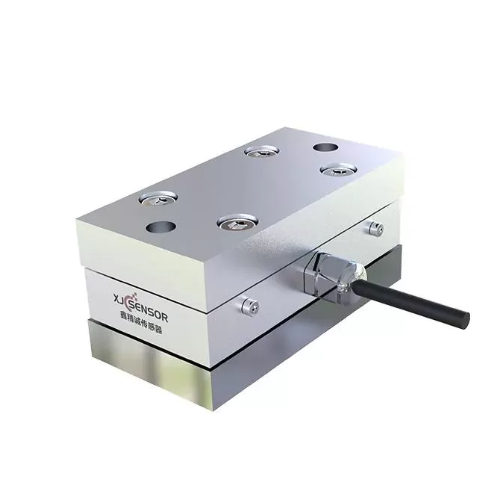

XJCSENSOR X-2A-L80-W40-H37 2 Axis Load Cell (10kg~200kg)

Capacity: 10kg~200kg

Non-linearity: ≤0.2%F.S.

Repeatability: ≤0.1%F.S.

Zero balance: ±2%F.S.

Operating temp range: -20~80°C

Compensated temp range: -10~40°C

Insulation: ≥2000MΩ/50VDC

Recommended excitation voltage: 5-10 VDC

Safe load limit: 150%F.S.

Temp effect on output: ≤±0.2%F.S./10°C

Temp effect on zero: ≤±0.2%F.S./10°C

Long-term crosstalk error: ≤0.5%F.S.

Protection class: IP66

Cable size: φ4*1m
