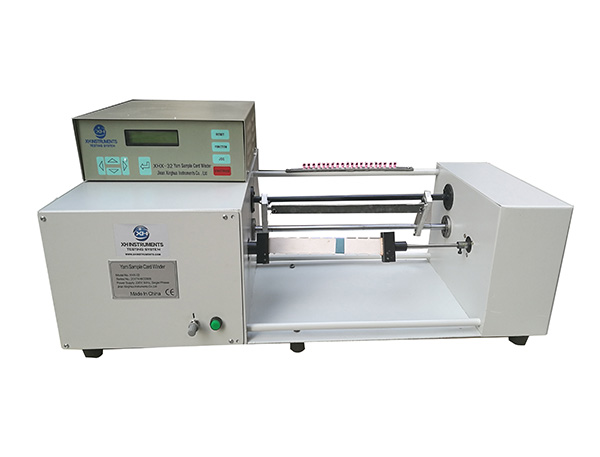

XHinstruments XHX-32 ເສັ້ນດ້າຍ Sample Card Winder

Suitable Yarn Diameter:: 0.03-1.5mm

Winding Width (color width): 0-80mm

Winding Length (paper board length): ≤300mm

Max winding colors: 1-20 types

Winding repeatablity according at the initial position: ≤0.2mm

Braking accuracy: ≤0.02mm

Storage modes: ≤6 groups

Speed: 0-1100rpm

Power Supply: AC 110V/220V, 50Hz/60Hz

Product Description:

Yarn Samples Card Winder is used for winding the yarn, various synthesize materials and other material of suit to wind etc., on to a paper tape. This product is newest design for winding various samples cards. yarn winding card is especially suitable for domain listed below: Sample cards, whiteness test, ultraviolet ray resist testing, sample standardization, color compare, color chart etc.

Test Standards:

1. It is suitable for all cards in the market.

2. The machine control system adopt 16 bit micro controller.

3. Winding adopt high resolution stepper drive pulse.

4. LCD display with backlight, spindle adopt frequency conversion technology
