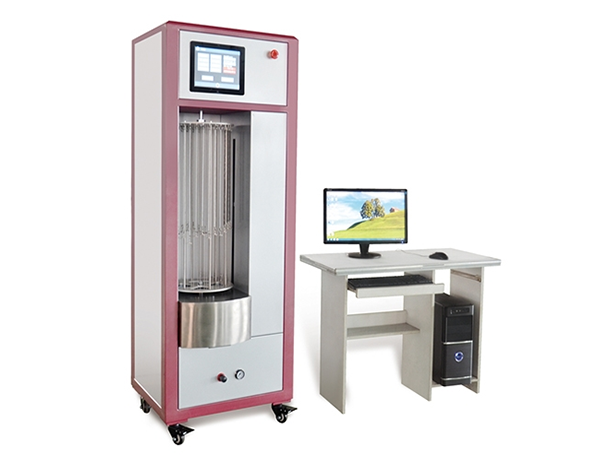

XHinstruments XHX-26 Crimp Contraction Tester (2.5cN - 5000cN)

Load force: 2.5cN - 5000cN precision 0.2cN

Length of sample: 500×2mm

Range of length measuring: 0-150mm

Measuring Indices: crimp contraction CC (%), curing modulus CM (%), crimp stability CS (%), thermal shrinkage S (%) and average value, standard difference, CV of all indices.

Pieces of test skein in one lot: 30 pieces

Power supply and consumption: 220V, 50HZ, 0.5KW

Compressed air: 0.2-0.3 Mpa

Dimension: 605×530×1640 mm

Product Description:

Crimp Contraction Tester  is controlled by the computer to measure thermal crimp contraction and boiling water contraction properties of textured filament (polyester, acrylic and polypropylene).

Crimp Contraction CC(%) = [(Lg－Lz) / Lg]×100%

Crimp Modulus CM(%) = [(Lg－Lf) / Lg]×100%

Crimp Stability CS(%) = [(Lg－Lb) / (Lg－Lz)]×100%

Test Standards:

Its principle and performance are in accordance with GB/T6506 – 2001 <Test method of crimp contraction performance of textured filament of synthetic fiber> and GB/T6505 – 2001 <Test method of boiling water contraction rate of textured filament of synthetic fiber>, BISFA

Product Features:

In course of measuring it has functions of automatic load changing, automatic load adding, automatic timing, automatic length measuring and automatic zeroing etc. and result of measurement can be automatically calculated and printed.

Adopt WINDOWS operating system and English interface, it has friendly man-machine dialogue function and characteristics of easy operation, software self-judgment of trouble and English prompts.

Adopt high precision positioning system,do not need to repeatedly,greatly improve work efficiency.

Adopt high end ball screw,which has high measuring precision and good reproducibility.

Adopt industrial touch screen,and the software can be implemented in both English and Chinese.

Test data can be stored automatically on disk for easy management and application.

Test data of software can be set by yourself according to requirement of customer for analysis of quality management.
